As industrial intelligence continues to advance rapidly, industrial robots have become a key force driving manufacturing transformation and are now widely deployed across various stages of production. While robotic technology significantly improves production efficiency and reduces labor costs, it also introduces increasingly prominent workplace safety challenges.

To protect both personnel and equipment, the industry has developed an integrated intelligent safety protection solution centered around Safety Light Curtains + Safety Mats + LiDAR + Vision Cameras, creating a reliable and stable industrial safety protection system from multiple dimensions.

The following is a dedicated safety protection solution designed specifically for industrial robot applications.

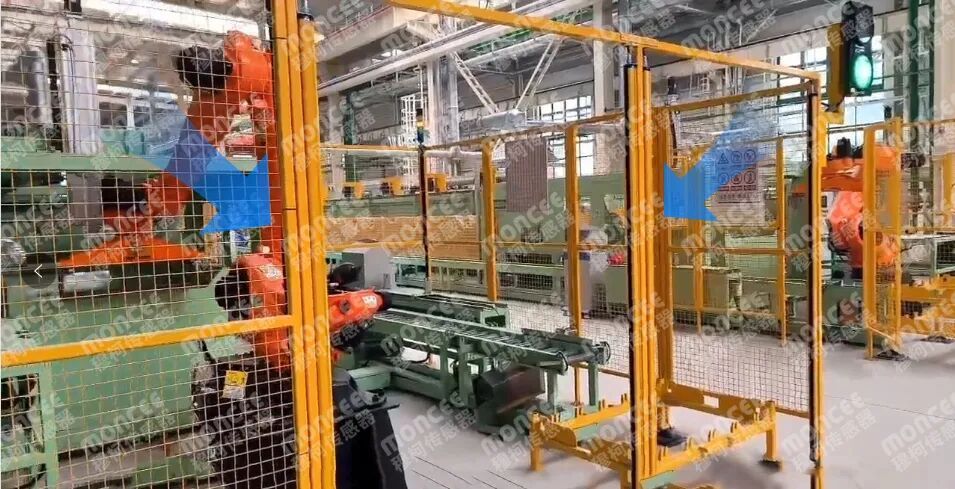

Safety Light Curtain: Entrance Protection with a Reliable Beam-Based Safety Barrier

In smart factories, Safety Light Curtains are commonly used as a fundamental safety protection device for industrial robot work areas. They are typically installed at robot-cell entrances and critical access points, where they play an important role in personnel safety protection.

A safety light curtain is a through-beam photoelectric safety device, mainly consisting of a transmitter and receiver. By transmitting and receiving infrared beams, it creates a continuous and dense protective scanning field.

During normal equipment operation, the light curtain continuously and automatically scans the effective protection area between the transmitter and receiver in real time.

If a person, workpiece, or other opaque object enters the protected area and interrupts any beam beyond the preset detection threshold, the light curtain immediately generates a safety signal and rapidly commands the robot or associated equipment to stop.

This helps prevent accidents such as pinching, crushing, and collisions at the source, providing stable and reliable protection for personnel and equipment.

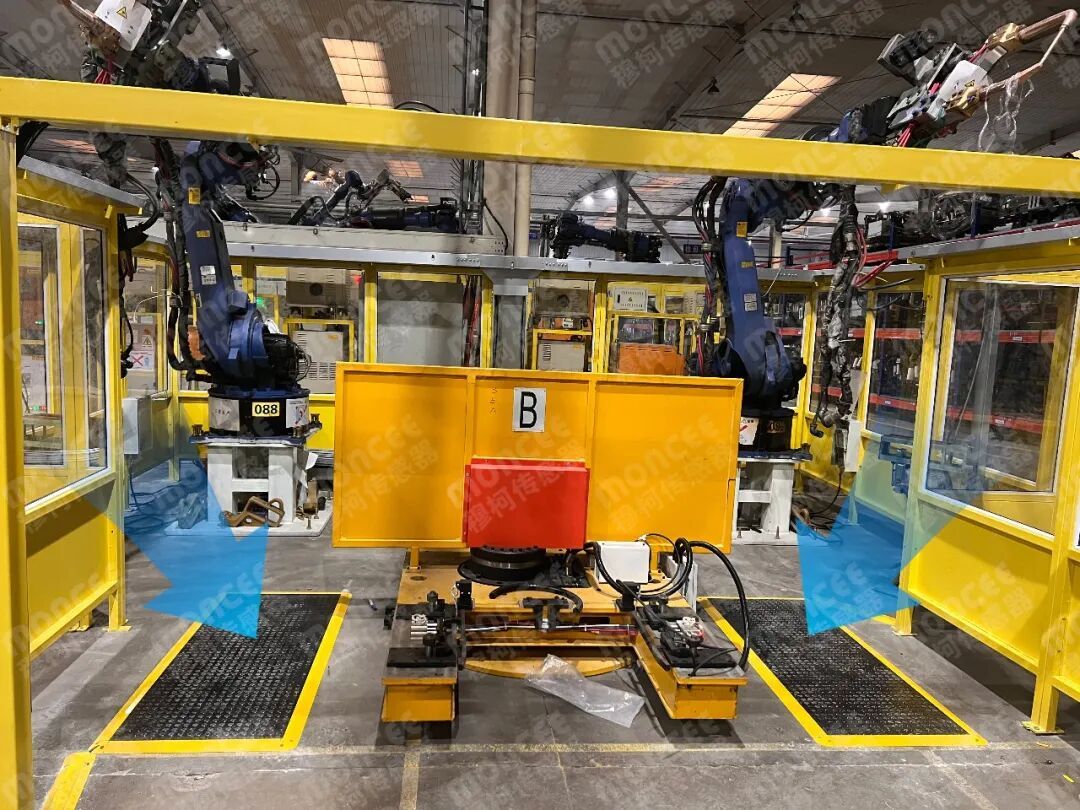

Safety Mat: Full-Floor Protection with Customizable Adaptation for Multiple Applications

As an important component of the overall safety protection solution, the Safety Mat is primarily installed around the operating areas of industrial robots and other hazardous equipment, creating a floor-level safety protection zone.

When a person or object steps onto the safety mat and applies sufficient pressure, the mat immediately triggers a safety signal, commanding the equipment to stop operating and providing active safety protection from the floor level.

Safety mats can be customized according to actual operating conditions, available floor space, and required protection areas, allowing them to accommodate different equipment layouts and working environments.

They can also feature properties such as slip resistance, wear resistance, pressure resistance, and corrosion resistance, enabling stable long-term operation in demanding industrial environments.

By effectively preventing personnel from accidentally entering hazardous areas, safety mats further enhance the reliability of the overall protection system.

LiDAR: Area Detection for Early Warning and Rapid Intervention

LiDAR is typically installed at key monitoring locations around industrial robots. Based on actual operating conditions and the robot's working range, multiple levels of protection zones and warning distances can be configured flexibly.

With its high-precision detection and rapid response capabilities, LiDAR can continuously scan and monitor the robot's operating area in real time.

When personnel, foreign objects, or other targets enter a predefined hazardous protection zone, the system immediately outputs a safety signal and rapidly commands the robot and associated equipment to stop operating.

This provides early warning and active intervention, further strengthening safety protection in three-dimensional space and effectively reducing the risk of accidents.

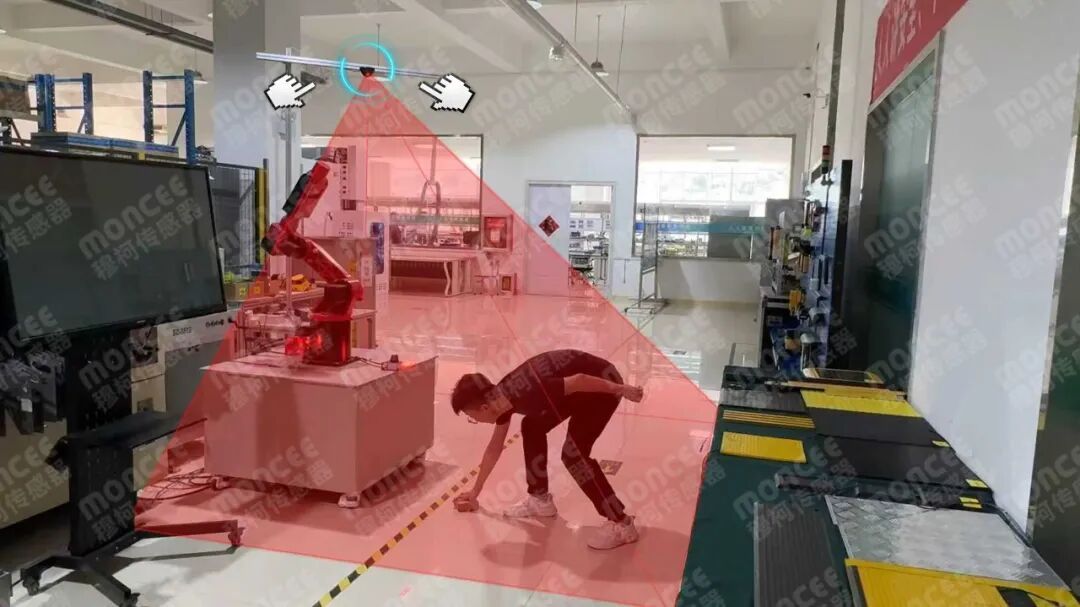

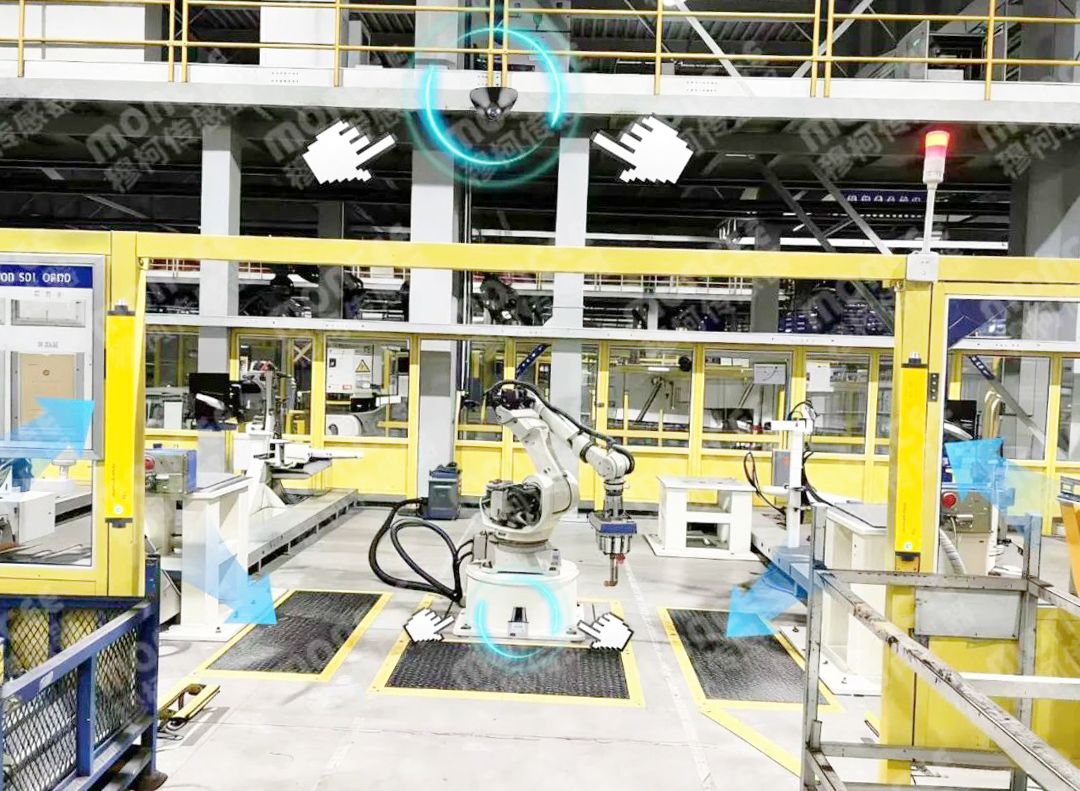

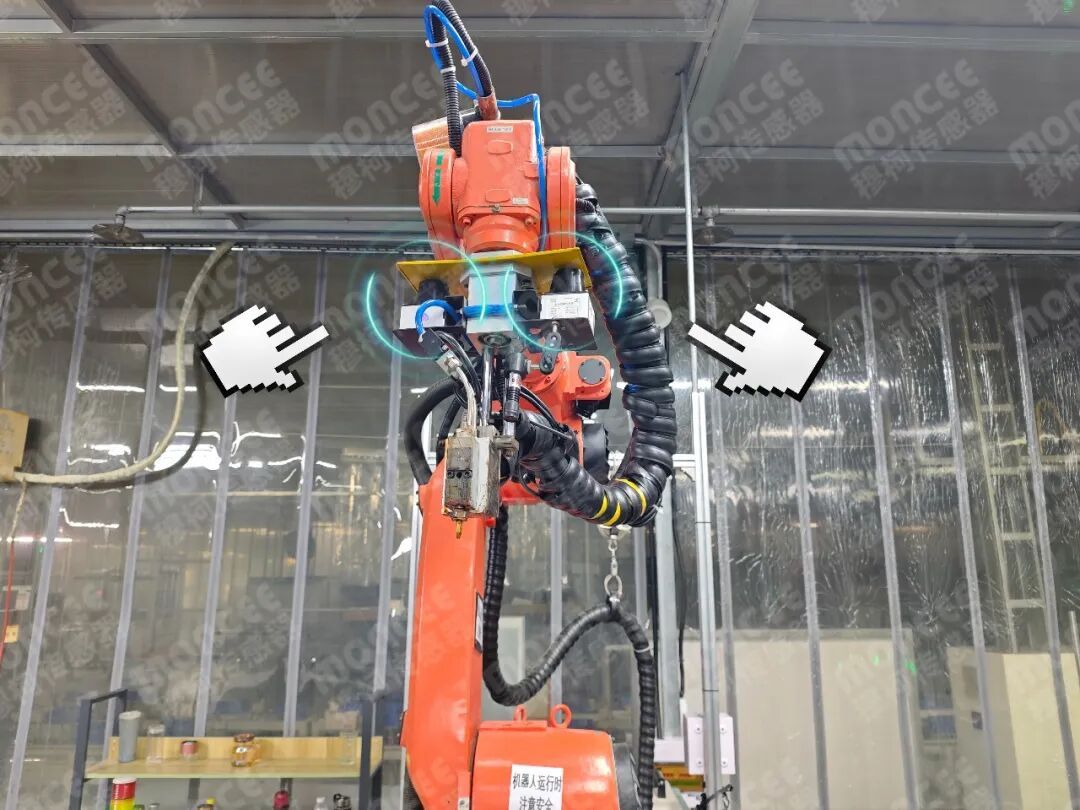

Moncee Minyou – MVS-HDS Vision Camera Safety Sensor: An AI-Powered Smart Eye for Dynamic Safety Protection

The Moncee Minyou – MVS-HDS Vision Camera Safety Sensor as the “intelligent eye” of the safety protection system.

Built around AI human-shape recognition technology, it incorporates a proprietary high-precision human detection algorithm. The system can perform multidimensional analysis and comparison of real-time images within the robot's working area, identifying human presence, movement trajectories, and positional changes.

When a person is detected entering critical areas such as the robot's operating radius or hazardous operating zones, the system can immediately output a trigger signal and rapidly communicate with the robot control system to initiate emergency deceleration or shutdown.

With its visual and intelligent capabilities, this solution reduces reliance on traditional manual monitoring. It can effectively mitigate the risk of collisions between personnel and robots in complex, dynamic environments, providing an additional layer of safety for industrial production.

Building a Multi-Layer Industrial Robot Safety Protection System

In summary, the four protection devices—Safety Light Curtain, Safety Mat, LiDAR, and Moncee Miyi MVS-HDS Vision Camera Sensor—each perform distinct functions while working together to create a multidimensional, multilayered, and intelligent safety protection system for industrial robots.

From entrance interception and floor-level protection to area monitoring and AI-based intelligent recognition, the solution upgrades conventional passive protection into a combination of active protection and early warning.

This integrated approach helps protect personnel, maintain stable equipment operation, and establish a strong safety foundation for intelligent and automated manufacturing.

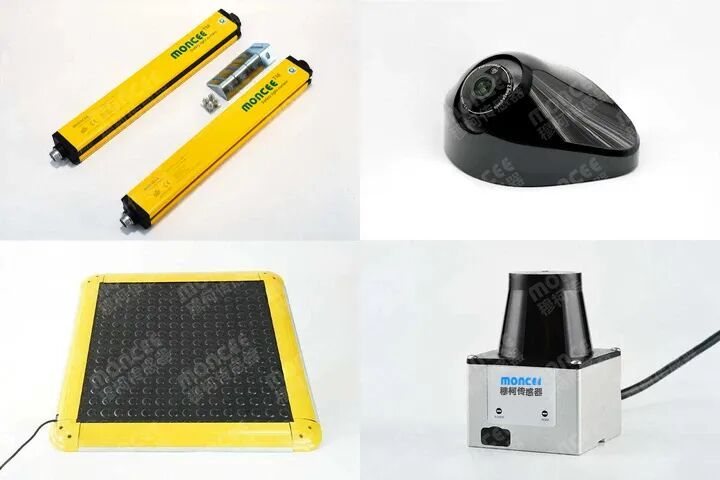

Core Safety Protection Products

Safety Light Curtain: Beam-based protection at entrances and access points, with real-time detection and rapid machine shutdown.

Safety Mat: Full-floor pressure-triggered protection with customizable dimensions for different operating conditions.

LiDAR: Multilevel spatial monitoring with early warning and active intervention.

Moncee Minyou – MVS-HDS Vision Camera Safety Sensor: AI-based human-shape recognition providing dynamic, visualized safety protection.
